Webhook-Payload

Tipp

🤓 Ein persönlicherer Payload…

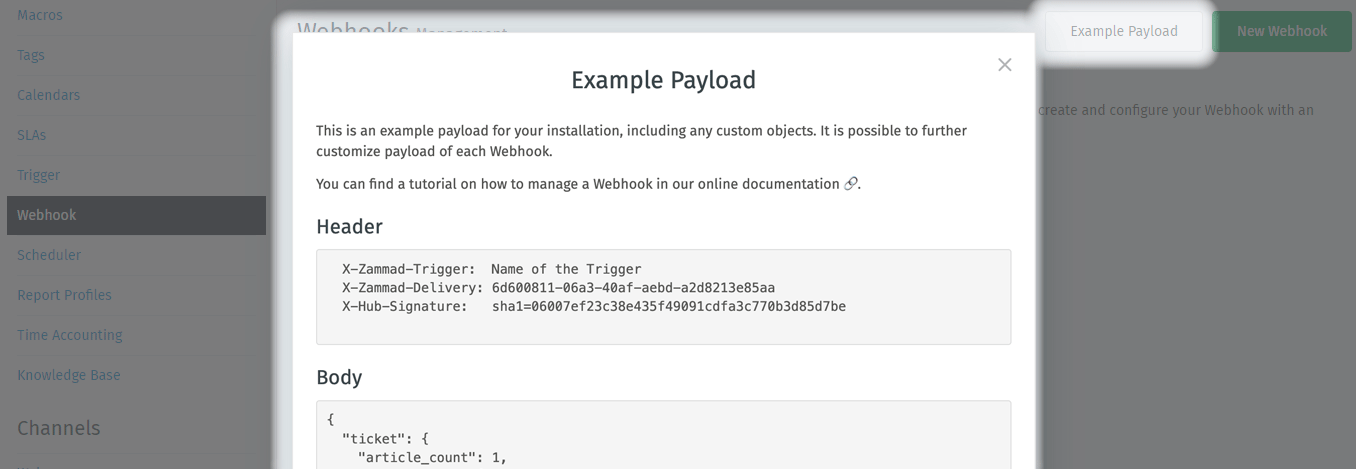

Ihre Zammad-Instanz liefert ein Beispiel für einen Standard-Payload mit. Dieser Payload passt zu Ihrer Konfiguration und enthält Ihre benutzerdefinierten Objekte!

Beispiel Payload berücksichtigt die Konfiguration für die jeweilige Instanz

Anfrage Header

Zammad sendet die folgenden Header in jeder Webhook-POST-Anfrage:

User-Agent

"Zammad User Agent"

X-Zammad-Trigger

Der Name des auslösenden Triggers

X-Zammad-Delivery

Eine eindeutige, zufällige Zeichenkette

X-Hub-Signature

Der SHA-1-Hash Ihres HMAC-SHA1-Signatur-Tokens (vorausgesetzt, Sie haben bei der Erstellung Ihres Triggers einen solchen angegeben)

Standard-JSON-Nutzlast

Wenn der Webhook-Payload nicht angepasst ist, enthalten die Anfragen je nach Webhook-Typ Standard-Payloads.

Reguläre Webhooks (Beispiel)

{
  "ticket": {
    "article_count": 1,
    "article_ids": [
      104
    ],
    "create_article_sender": "Customer",
    "create_article_sender_id": 2,
    "create_article_type": "phone",
    "create_article_type_id": 5,
    "created_at": "2020-11-13T14:34:35.282Z",
    "created_by": {
      "active": true,
      "created_at": "2020-11-13T12:57:47.679Z",
      "created_by": "-",
      "created_by_id": 1,
      "email": "chris@chrispresso.com",
      "firstname": "Christopher",
      "id": 3,
      "image": "7a6a0d1d94ad2037153cf3a6c1b49a53",
      "lastname": "Miller",
      "login": "chris@chrispresso.com",
      "organization": "Chrispresso Inc.",
      "organization_id": 2,
      "out_of_office": false,
      "role_ids": [
        1,
        2
      ],
      "roles": [
        "Admin",
        "Agent"
      ],
      "updated_at": "2020-11-13T13:00:03.064Z",
      "updated_by": "chris@chrispresso.com",
      "updated_by_id": 3,
      "verified": false,
      "vip": false
    },
    "created_by_id": 3,
    "customer": {
      "active": true,
      "address": "Bennelong Point\nSydney NSW 2000",
      "created_at": "2020-11-13T12:57:48.779Z",
      "created_by": "-",
      "created_by_id": 1,
      "email": "emily@example.com",
      "firstname": "Emily",
      "id": 8,
      "image": "99ba64a89f7783c099c304c9b00ff9e8",
      "lastname": "Adams",
      "login": "emily@example.com",
      "note": "did order café au lait, ask next time if the flavor was as expected",
      "organization": "Awesome Customer Inc.",
      "organization_id": 3,
      "out_of_office": false,
      "phone": "0061 2 1234 7777",
      "role_ids": [
        3
      ],
      "roles": [
        "Customer"
      ],
      "updated_at": "2020-11-13T14:34:37.366Z",
      "updated_by": "chris@chrispresso.com",
      "updated_by_id": 3,
      "verified": false,
      "vip": false
    },
    "customer_id": 8,
    "group": {
      "active": true,
      "created_at": "2020-11-13T12:57:47.498Z",
      "created_by": "-",
      "created_by_id": 1,
      "follow_up_assignment": true,
      "follow_up_possible": "yes",
      "id": 3,
      "name": "Service Desk",
      "updated_at": "2020-11-13T12:57:48.044Z",
      "updated_by": "-",
      "updated_by_id": 1,
      "user_ids": [
        3,
        4,
        5
      ],
      "users": [
        "chris@chrispresso.com",
        "jacob@chrispresso.com",
        "emma@chrispresso.com"
      ]
    },
    "group_id": 3,
    "id": 81,
    "last_contact_at": "2020-11-13T14:34:35.318Z",
    "last_contact_customer_at": "2020-11-13T14:34:35.318Z",
    "number": "10081",
    "organization": {
      "active": true,
      "created_at": "2020-11-13T12:57:47.524Z",
      "created_by": "-",
      "created_by_id": 1,
      "domain_assignment": false,
      "vip": true,
      "id": 3,
      "member_ids": [
        8,
        6,
        7
      ],
      "members": [
        "emily@example.com",
        "anna@example.com",
        "samuel@example.com"
      ],
      "name": "Awesome Customer Inc.",
      "note": "Global distributor of communication and security products, electrical and electronic wire & cable.",
      "shared": true,
      "updated_at": "2020-11-13T14:34:35.346Z",
      "updated_by": "-",
      "updated_by_id": 1
    },
    "organization_id": 3,
    "owner": {
      "active": true,
      "created_at": "2020-11-13T12:57:48.036Z",
      "created_by": "-",
      "created_by_id": 1,
      "email": "emma@chrispresso.com",
      "firstname": "Emma",
      "id": 5,
      "image": "b64fef91c29105b4a08a2a69be08eda3",
      "lastname": "Taylor",
      "login": "emma@chrispresso.com",
      "organization": "Chrispresso Inc.",
      "organization_id": 2,
      "out_of_office": false,
      "role_ids": [
        2
      ],
      "roles": [
        "Agent"
      ],
      "updated_at": "2020-11-13T12:57:48.072Z",
      "updated_by": "-",
      "updated_by_id": 1,
      "verified": false,
      "vip": false
    },
    "owner_id": 5,
    "priority": {
      "active": true,
      "created_at": "2020-11-13T12:54:02.238Z",
      "created_by": "-",
      "created_by_id": 1,
      "default_create": true,
      "id": 2,
      "name": "2 normal",
      "updated_at": "2020-11-13T12:54:02.238Z",
      "updated_by": "-",
      "updated_by_id": 1
    },
    "priority_id": 2,
    "state": "open",
    "state_id": 2,
    "ticket_time_accounting": [],
    "ticket_time_accounting_ids": [],
    "title": "Webhook-Test",
    "updated_at": "2020-11-13T14:34:35.333Z",
    "updated_by": {
      "active": true,
      "created_at": "2020-11-13T12:57:47.679Z",
      "created_by": "-",
      "created_by_id": 1,
      "email": "chris@chrispresso.com",
      "firstname": "Christopher",
      "id": 3,
      "image": "7a6a0d1d94ad2037153cf3a6c1b49a53",
      "lastname": "Miller",
      "login": "chris@chrispresso.com",
      "organization": "Chrispresso Inc.",
      "organization_id": 2,
      "out_of_office": false,
      "role_ids": [
        1,
        2
      ],
      "roles": [
        "Admin",
        "Agent"
      ],
      "updated_at": "2020-11-13T13:00:03.064Z",
      "updated_by": "chris@chrispresso.com",
      "updated_by_id": 3,
      "verified": false,
      "vip": false
    },
    "updated_by_id": 3
  },
  "article": {
    "attachments": [
      {
        "id": 174,
        "filename": "image1.jpeg",
        "size": "35574",
        "preferences": {
          "Content-Type": "image/jpeg",
          "Mime-Type": "image/jpeg",
          "Content-ID": "81.969520479@zammad.example.com",
          "Content-Disposition": "inline",
          "resizable": true,
          "content_preview": true
        },
        "url": "https://zammad.example.com/api/v1/ticket_attachment/81/104/174"
      }
    ],
    "body": "This is a simple Webhook Test.<div><br></div><div>\n<img style=\"max-width:100%;width: 849px;max-width: 100%;\" src=\"/api/v1/ticket_attachment/81/104/174?view=inline\"><br>\n</div>",
    "content_type": "text/html",
    "created_at": "2020-11-13T14:34:35.318Z",
    "created_by": {
      "active": true,
      "created_at": "2020-11-13T12:57:47.679Z",
      "created_by": "-",
      "created_by_id": 1,
      "email": "chris@chrispresso.com",
      "firstname": "Christopher",
      "id": 3,
      "image": "7a6a0d1d94ad2037153cf3a6c1b49a53",
      "lastname": "Miller",
      "login": "chris@chrispresso.com",
      "organization": "Chrispresso Inc.",
      "organization_id": 2,
      "out_of_office": false,
      "role_ids": [
        1,
        2
      ],
      "roles": [
        "Admin",
        "Agent"
      ],
      "updated_at": "2020-11-13T13:00:03.064Z",
      "updated_by": "chris@chrispresso.com",
      "updated_by_id": 3,
      "verified": false,
      "vip": false
    },
    "created_by_id": 3,
    "from": "Emily Adams <emily@example.com>",
    "id": 104,
    "internal": false,
    "origin_by": "emily@example.com",
    "origin_by_id": 8,
    "sender": "Customer",
    "sender_id": 2,
    "ticket_id": 81,
    "to": "Service Desk",
    "type": "phone",
    "type_id": 5,
    "updated_at": "2020-11-13T14:34:35.318Z",
    "updated_by": {
      "active": true,
      "created_at": "2020-11-13T12:57:47.679Z",
      "created_by": "-",
      "created_by_id": 1,
      "email": "chris@chrispresso.com",
      "firstname": "Christopher",
      "id": 3,
      "image": "7a6a0d1d94ad2037153cf3a6c1b49a53",
      "karma_user_ids": [],
      "lastname": "Miller",
      "login": "chris@chrispresso.com",
      "organization": "Chrispresso Inc.",
      "organization_id": 2,
      "out_of_office": false,
      "role_ids": [
        1,
        2
      ],
      "roles": [
        "Admin",
        "Agent"
      ],
      "updated_at": "2020-11-13T13:00:03.064Z",
      "updated_by": "chris@chrispresso.com",
      "updated_by_id": 3,
      "verified": false,
      "vip": false
    },
    "updated_by_id": 3,
    "accounted_time": 0
  }
}

Bemerkung

  • Zur besseren Lesbarkeit wurden alle leeren und null Werte im obigen Beispiel-Payload weggelassen. Das bedeutet, dass die Webhooks, die Sie erstellen, zusätzliche, hier nicht aufgeführte Felder enthalten.

  • Webhooks enthalten auch Felder für alle relevanten benutzerdefinierten Objekte, die in Ihrem System angelegt sind.

  • Anhänge sind nicht enthalten; Links zu Anhängen sind enthalten (Authentifizierung erforderlich).

  • Verknüpfte Tickets sind nicht enthalten.

  • Keines der folgenden Benutzerattribute ist enthalten:

    • last_login

    • login_failed

    • password

    • preferences

    • group_ids

    • groups

    • authorization_ids

    • authorizations

Vordefinierte Webhooks

Jede vordefinierte Webhook-Vorlage bietet einen speziellen Payload für einen bestimmten Dienst. Siehe Webhook-Beispiele für weitere Informationen.
